🔥 Hоt Dеаlѕ Harsh Outdoor 5-Port Gigabit Ethernet Fiber Converter, Industrial DIN-Rail Network Switch, 100/1000Base-T to LC, Up to 20KM(with SFP Transceiver), IP40, Extreme Heat -40°～ 85°C (-40°～ 185°F) Reviews
So you can check out the other reviews at Amazon.com
only with $
| Operating Voltage | 9 Volts |
| Brand | OLYCOM |
| Switch Type | Metal |
| Material | Metal |
| Item Dimensions LxWxH | 8.3 x 6.7 x 2.4 inches |
| Mounting Type | DIN 导轨 |
| International Protection Rating | IP40 |
| Color | Black |
| Unit Count | 1 Count |
| Number of Items | 1 |
- Interface: 4 10/100/1000Base-TX CAT5 ports and 1 10/100/1000Base-X LC uplink port. 1310nm operating wavelength,single mode,dual fiber, up to 20km transmission distance.
- Industry Standards: EMI: FCC Part 15 Subpart B Class A，EN 55022 Class A EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3，EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3，EN 61000-4-8 Traffic Control：NEMA-TS2 Vibration：IEC 60068-2-6 Freefall：IEC 60068-2-32 Shock：IEC 60068-2-27 Rail Traffic：EN 50121-4
- Wide Temperature & Tough Environment: Working temperature：-40°～ 85°C (-40°～ 185°F),Storage temperature :-40°～ 85°C (-40°～ 185°F).Working humidity:10%～90%,non-condensing; Storage humidity: 10%～95%,non-condensing
- Safety, Installation& PowerSupply: Meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. Commercial CE/LVD EN60950. Redundant dual DC input power, DC 9-36V Input voltage (Power supply is sold separately).

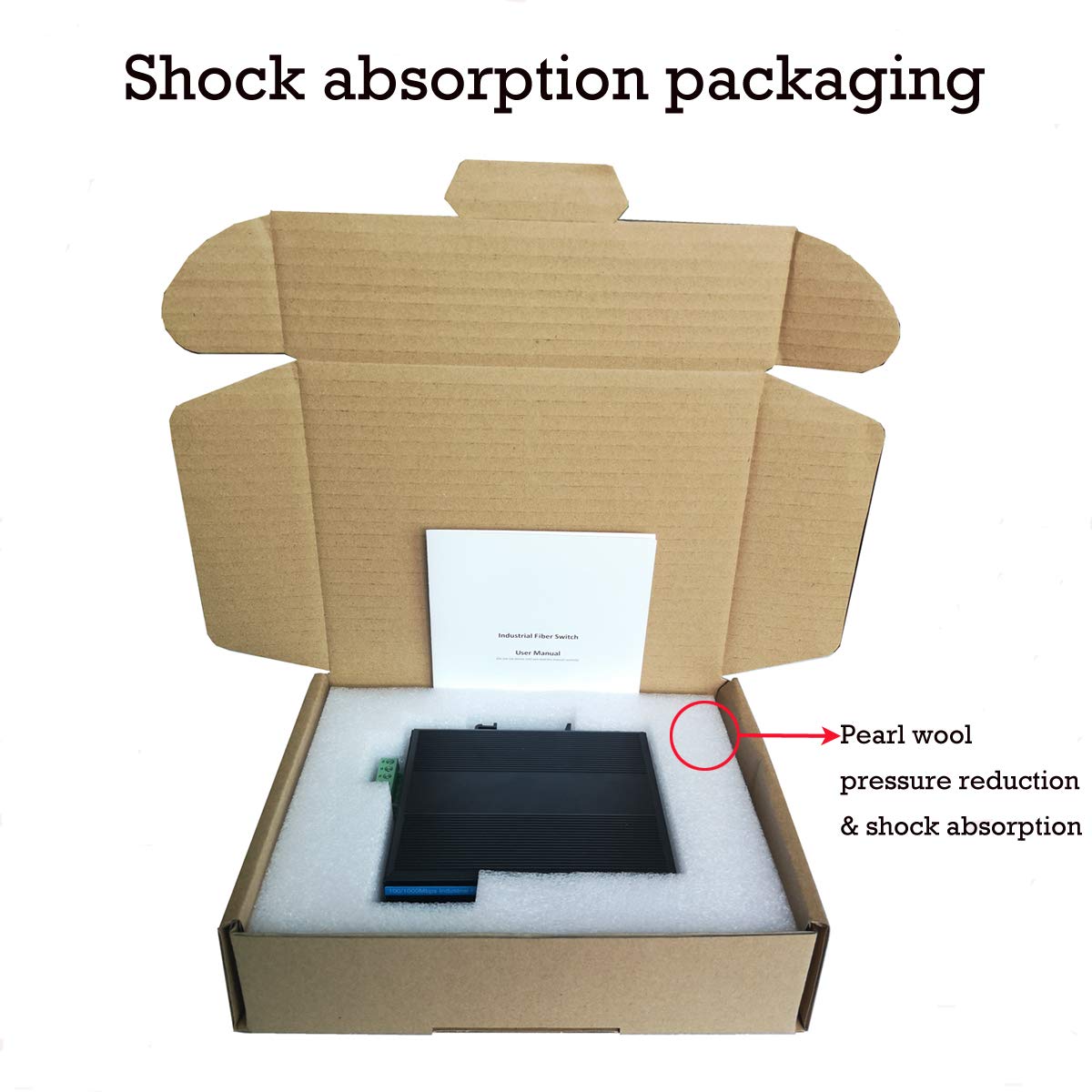

- What you get: 1pc Mini 5-port hardened gigabit din-rail switch,1pc 1.25Gb SFP module and 1 User Manual, Replacement within 1 year and 5 years repairing.
Product Description
Full Gigabit Ethernet Industrial Fiber Switch
1. The 5 port industrial fiber switch has 4x10/100/1000Base T(X) RJ45 Port and 1x1000Base F(X) SFP fiber port.
2. This industrial switch is sold with one SFP transceiver. The industrial SFP transceiver is 1.25G dual fiber, single-mode, 20KM, LC. You can use other different brands of 1.25G SFP transceivers for it too.
3. Supports 9.6K jumbo frames
4. Support auto-negotiation, plug and play, no configuration needed
5. Low-power consumption CPU, no fan quiet operation, green energy saving
 |
 |
 |
 |
|---|---|---|---|

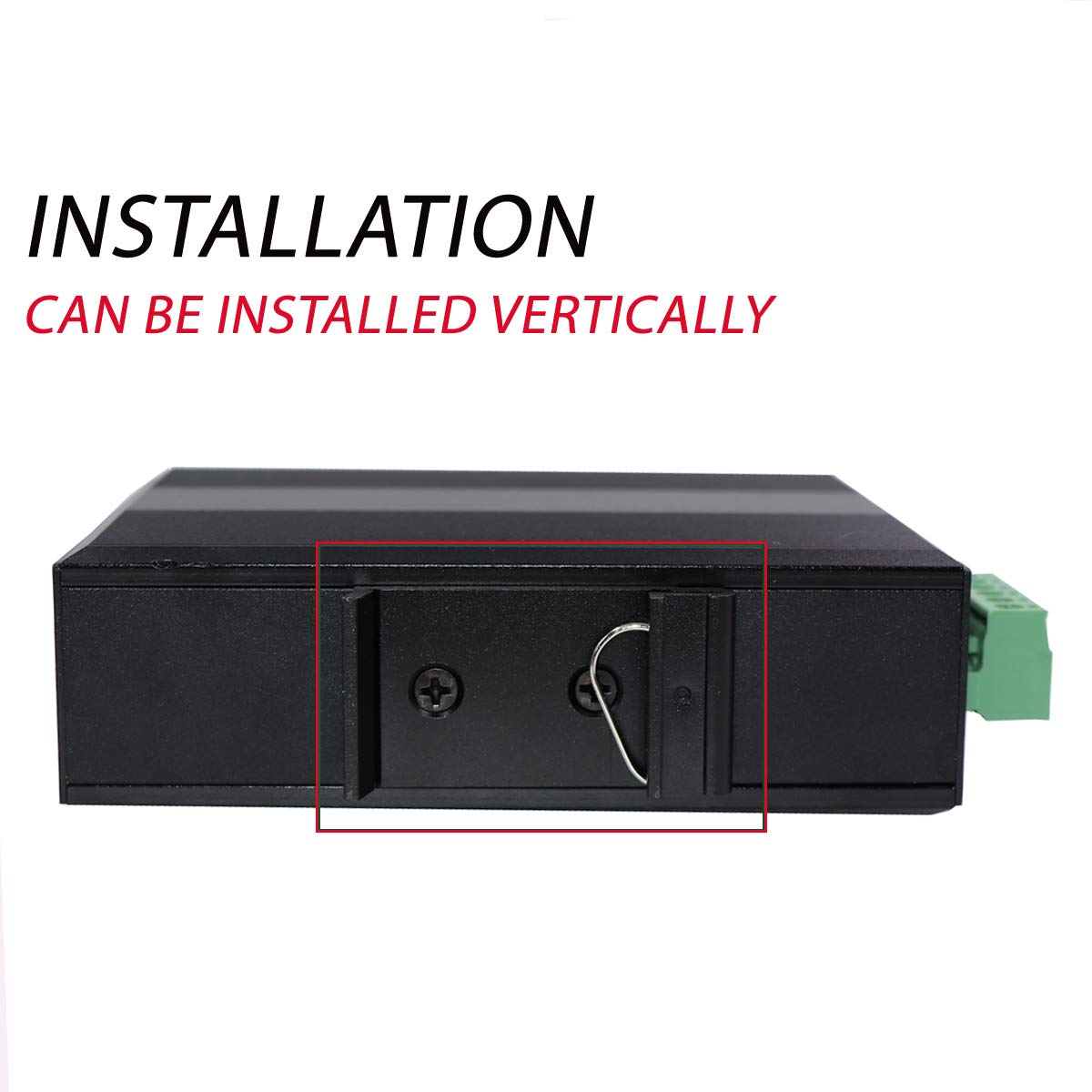

Lightning ProtectionThe industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system. | Industrial Operating TemperatureThe 5 port industrial Ethernet switches are designed with industrial operating temperatures ranging from -40ºC to 85ºC to pass through dangerous environmental. | Dual Power SupplyThe industrial Ethernet switch supports a dual power supply which input voltage is 9-36VDC (Sold without a power adapter and need to order separately). Support reverse connection. | Din-rail MountedEasy to use with Din-rail mounted and save space and time. ( Sold without din rail mount and need to order separately). The din rail switch aslo can be customized to be desktop. |
 | |  |  |  |  | |
|---|---|---|---|---|---|---|

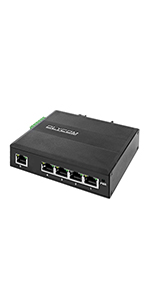

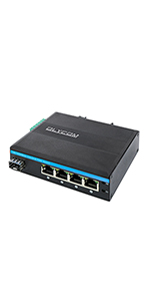

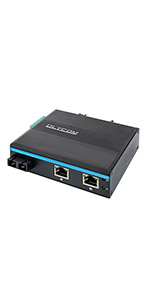

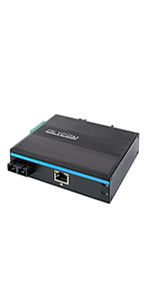

| 10/100M Industrial Media Converter | 10/100/1000M Industrial Media Converter | 10/100/1000M 3ports Industrial Fiber Switch | 10/100/1000M 5ports Industrial Fiber Switch | 10/100/1000M 6ports Industrial Fiber Switch | 10/100/1000M 5ports Industrial Network Switch | |
| Fiber Ports | 1 | 1 | 1 | 1 | 2 | 0 |
| Network Ports | 1 | 1 | 2 | 4 | 4 | 5 |
| Rate | 10/100M | 10/100/1000M | 10/100/1000M | 10/100/1000M | 10/100/1000M | 10/100/1000M |
| Jumbo Frames | No | ✓ | ✓ | ✓ | ✓ | ✓ |
| Mount Type | Din-Rail | Din-Rail | Din-Rail | Din-Rail | Din-Rail | Din-Rail |
| Input Voltage | 9-36VDC | 9-36VDC | 9-36VDC | 9-36VDC | 9-36VDC | 9-36VDC |
Specifications for this item
